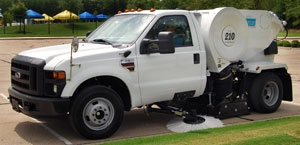

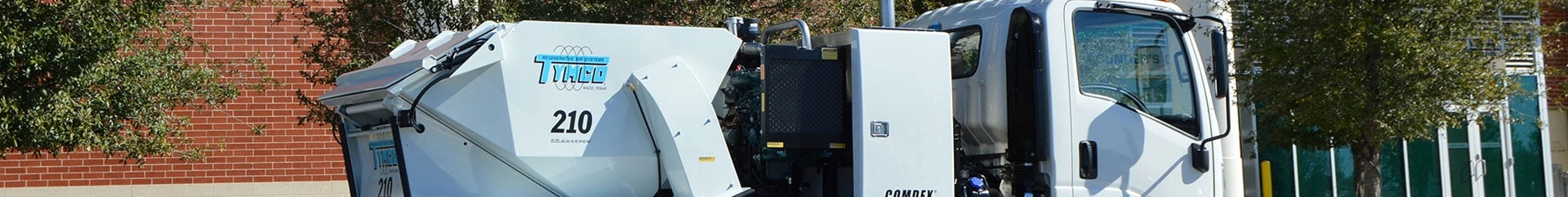

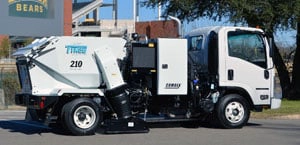

TYMCO Model 210® Parking Lot Sweeper
Brochures
Specs
Sweeper Features
Pick-Up Head
The TYMCO Model 210® heavy duty pick-up head incorporates full-width air blast and suction and is designed to work effortlessly with the TYMCO Regenerative Air System to pick up a wide variety of parking lot debris from leaves and trash to heavy dirt, sand and rocks. The Model 210 pick-up head comes standard with long-lasting Duo-Skids® which provide increased sweeping performance and longer wear.
Hopper
The Model 210’s powerful piggyback hopper dump cylinders lift the hopper up to 60 inches for dumping into dumpsters or containers commonly located near parking lots and garages. These heavy duty dump cylinders allow the Model 210 to high dump even the heaviest of loads. A built-in safety strut is permanently attached to the hopper frame for easy accessibility when performing routine maintenance.
Gutter Broom
The 32” diameter Model 210 gutter broom option removes debris from around parking lot islands, medians and parking bumpers. An optional tilt adjuster allows you to reach down into the deepest curbs or gutters. The innovative gutter broom provides excellent performance by automatically determining the “digging” pressure needed for different debris; therefore, owners get maximum gutter broom bristle life and sweeping performance. If the gutter broom encounters an immovable object, it will automatically retract to avoid potential damage and return to the original position once the immovable object has been passed, all without intervention from the operator.
Power Unit
The Model 210 is powered by a turbocharged 56 horsepower Kubota auxiliary engine. This engine powers all hydraulic functions through a gear driven pump and directly belt drives the blower. The lightweight aluminum alloy blower that drives the TYMCO Regenerative Air System only requires a modest amount of horsepower; therefore TYMCO’s engineers designed the Model 210 around a smaller, more fuel efficient auxiliary engine.
Blower Wheel
The Model HSP is the only airport runway sweeper that utilizes a super-efficient aluminum alloy blower that is self-cleaning and reduces fuel consumption because of its lightweight design requiring less horsepower. The blower is designed to work with the TYMCO Regenerative Air System to both push and pull air which delivers even greater sweeping performance. The Model HSP blower also has a natural rubber coating providing maximum wear against abrasive debris.
Truck Types
Conventional
International 4300 or Freightliner M2
Dust Control System
The Model 210 is the only parking lot sweeper on the market with a high-efficiency centrifugal dust separator for maximum fine dust particulate separation which provides excellent dust control while using less water. TYMCO’s engineers take several aspects into account when designing for better dust control such as water nozzle design and placement, not just adding more water like other parking lot sweepers. The Model 210 has a water capacity option of up to 102.5 gallons which provides hours of sweeping while maintaining excellent dust control.
​
TYMCO’s inherent design for conserving water while providing excellent dust control allows the Model 210 to pass the strict South Coast Air Quality Management District (AQMD) Rule 1186 standard for excellent dust and PM10 control.
Cabover
Peterbilt 220 or Autocar Xpert
Sweeper Options
Gutter Broom – Right in lieu of standard left or Twin
​
Gutter Broom Tilt Adjuster – Left, Right or Twin
​
Auxiliary Hand Hose
​
Sound Reduction Engineering (SRE) Package
Camera/Monitor System
​
COMDEX®
​
Backpack Blower Storage Box
Stainless Steel Hopper
​
Dual Steering
​
Pick-Up Head Curtain Lifter
